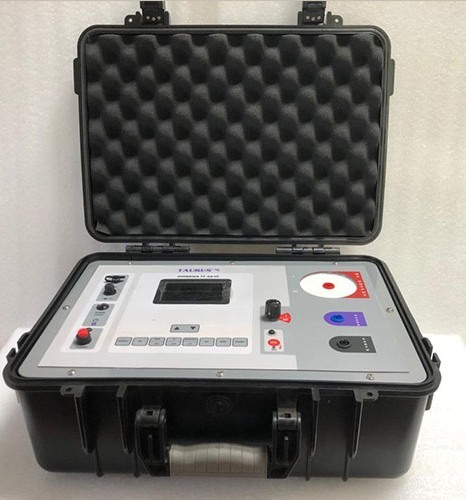

Taurus Ohmega Insulation Tester

Get a Price/Quote

MOQ : 1 Unit

Taurus Ohmega Insulation Tester Specification

Batteries Type
8 x 1.5V AA batteries

Usage & Applications
Testing insulation resistance in cables, motors, transformers, and electrical installations

Pressure
Up to 5kV test voltage

Accuracy
2% of reading

Resistant Feature
Shock Resistant, Dust Proof

Product Type
Insulation Tester

Material
ABS Plastic

Measuring Voltage Range
500V / 1000V / 2500V / 5000V

Operating Temperature
0C to 40C

Frequency (MHz)
50Hz/60Hz AC

Insulation Box
Yes

Protection System
Overload Protection

Size
Compact Handheld

Color
Yellow & Black

Dimension (L*W*H)
210mm x 155mm x 95mm

Weight
Approx. 1.2 kg

Taurus Ohmega Insulation Tester Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units, Unit Per Month

Delivery Time
1 Week

About Taurus Ohmega Insulation Tester

The OHMEGA IT is a Digital Insulation Analyser with simultaneous indication of Insulation Resistance in Kilo megha ohms, PI INDEX, DAR, Voltage applied, Leakage current, Time elapsed etc. The output is derived with the latest state of the art technique achieving high efficiency and output regulation. The OHMEGA IT comes with various models with test voltages ranging from 5kV to 30kV, range up to 35 Tohms. Apart from standard models available, the option of customized short circuit current is also provided

Features

Standard 2Tohms,Upgrade up to 35Tohms range
Automatic 60secondsIR recording
Automatic Di-electricab sorption ration (DAR) computing
Automatic Polarisation index (PI) computing
Optional Capacitance measurement and DDR test
PC interfacing &printing options
Compact, portable ,mains & battery operated

Advanced Measurement Capabilities

The Taurus Ohmega Insulation Tester provides a broad resistance range between 0.01M and 200G, with selectable test voltages of 500V, 1000V, 2500V, and 5000V. Its 2% accuracy ensures dependable results, making it ideal for a wide array of insulation testing scenarios, from routine maintenance to in-depth diagnostics.

User-Friendly and Durable Design

Constructed with reliable ABS plastic, the compact handheld unit weighs approximately 1.2kg and features shock-resistant, dustproof protection. The device incorporates a large backlit LCD screen, ensuring readability in various conditions, while the included insulation box protects the tester during transport and storage.

Ease of Operation and Safety

Operating at 0C to 40C and up to 80% relative humidity, the insulation tester supports convenient data holding and signals low battery status to avoid downtime. Its CAT III 1000V rating and built-in overload protection guarantee user safety during high-voltage applications.

FAQs of Taurus Ohmega Insulation Tester:

Q: How is the Taurus Ohmega Insulation Tester used for insulation resistance testing?

A: To use the Taurus Ohmega Insulation Tester, connect its probes to the equipment under test, select the desired test voltage (500V, 1000V, 2500V, or 5000V), and initiate the test. The large LCD will display the measured insulation resistance. Data can be recorded with the hold function, and the continuity testwith an audible buzzerfacilitates rapid diagnostics.

Q: What benefits does the large LCD display with backlight offer?

A: The large LCD display with backlight ensures easy viewing of readings, even in dimly lit environments such as industrial sites or electrical panels, reducing errors and improving safety during operation.

Q: When is it necessary to replace the batteries in this tester?

A: The insulation tester is powered by eight 1.5V AA batteries. It features a low battery indication, alerting you when replacements are needed. Replace the batteries promptly to ensure consistent, accurate measurements.

Q: Where can the Taurus Ohmega Insulation Tester be deployed?

A: This tester is suitable for use in various settings, including construction sites, maintenance workshops, manufacturing units, and electrical installations. Its robust build and protective features make it ideal for rugged or demanding environments.

Q: What is the process for testing continuity with a buzzer?

A: Simply switch to the continuity mode and connect the probes to the circuit. If continuity exists, the built-in buzzer will sound, providing immediate and clear notification of electrical connectivity.

Q: What advantages does the shock-resistant and dustproof design provide?

A: The shock-resistant and dustproof construction extends the instruments lifespan, minimizes damage from accidental drops or exposure to harsh environments, and maintains measurement accuracy over time.
