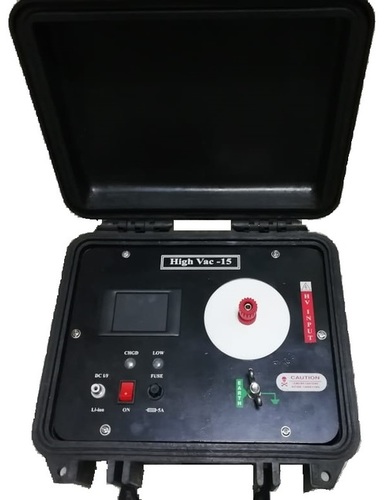

Taurus High Vac (Induced Voltage Detector)

Get a Price/Quote

MOQ : 1 Unit

Taurus High Vac (Induced Voltage Detector) Specification

Resistant Feature
Weather Resistant, Shockproof

Usage & Applications
For detecting the presence of induced voltage on overhead and underground power lines

Pressure
Atmospheric

Batteries Type
9V Alkaline

Accuracy
High Precision (±5%)

Product Type
Induced Voltage Detector

Material
High-Quality Plastic

Measuring Voltage Range
High Voltage (up to 33 kV)

Operating Temperature
-10°C to +55°C

Frequency (MHz)
50-60

Insulation Box
Yes

Protection System
Built-in Overload Protection

Size
Standard

Color
Yellow & Black

Dimension (L*W*H)
Approx. 400mm x 70mm x 80mm

Weight
Lightweight (Approx. 500g)

Storage Temperature
-20C to +70C

Application Field
Electric Utility, Power Transmission, Distribution Maintenance

Auto Power Off
Yes

Display Type
LED Indicator

Mounting
Handheld

Ingress Protection
IP54 Rated

Contact Type
Non-Contact Detection

Alarm System
Visual & Audible Indication

Power Consumption
Low Power

Standards Compliance
IS/IEC 61243-1:2003

Taurus High Vac (Induced Voltage Detector) Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units, Unit Per Month

Delivery Time
1 Week

Main Domestic Market
Karnataka

About Taurus High Vac (Induced Voltage Detector)

Protective grounds are required as per all safety standards whenever work isperformed on a de-energised transmission line with aid of dielectric gloves.The proper placement of protective grounds protects the worker from accidentalenergization of the transmission line. This would include any induced voltagesdue to nearby energised transmission lines.A typical method of grounding is sometimesreferred to as worksite grounding. With this method, protective grounds areplaced at the work site location. Proper selection of ground site and properconnection of the grounds is paramount in providing proper protection for theworker. Voltages of several KV have been calculated and measured. These voltages can be harmful toworkers and should be treated with duecaution. Detecting and measuring the induced voltage helps you in makingsuitable preparation and precaution before you commence the work. Aftergrounding it is also preferable to detect no induced voltages exists beforecommence of work ensuring proper work site grounding

Visual and Audible Alarm System

The Taurus High Vac detector includes both LED visual signals and audible alarms to promptly alert users of induced voltage presence on power lines. This dual-indication system enhances safety during field operations, ensuring that voltage detection is immediate and easily recognizable in diverse working environments.

Weather-Resistant, Shockproof Design

Engineered for rugged conditions, the device features an IP54-rated enclosure, making it suitable for use in challenging weather and harsh environments. Its high-quality plastic build provides shock resistance, while the insulation box offers additional protection, ensuring durability during frequent electric utility and maintenance tasks.

FAQs of Taurus High Vac (Induced Voltage Detector):

Q: How does the Taurus High Vac Induced Voltage Detector work?

A: The Taurus High Vac operates via non-contact detection, identifying the presence of induced voltage on power lines. Once voltage is detected, it provides visual indication using its LED display and an audible alarm for immediate user notification, ensuring enhanced electrical safety.

Q: What voltage range can this detector measure?

A: This device is designed to accurately detect high voltage up to 33 kV on both overhead and underground power lines, making it suitable for transmission and distribution maintenance tasks.

Q: When should I use the Taurus High Vac Detector during electrical maintenance?

A: You should use the Taurus High Vac Detector before commencing any maintenance or repair work on power lines to verify the absence or presence of induced voltage, thereby minimizing the risk of electrical accidents during field operations.

Q: Where can the Taurus High Vac Detector be applied?

A: It is ideal for use in electric utility fields, power transmission lines, and distribution maintenance, proving reliable performance whether working on overhead or underground installations under atmospheric pressure conditions.

Q: What are the benefits of its built-in overload protection and auto power-off features?

A: Built-in overload protection guards the device against surges and excessive currents, extending its lifespan. The auto power-off function conserves battery life, promoting efficiency when used in prolonged maintenance operations.

Q: How do I properly care for and store the Taurus High Vac Detector?

A: The detector should be stored within its insulation box at temperatures between -20C and +70C. Periodically check for battery power (9V alkaline), and keep the device clean and dry to maintain optimal function and weather resistance.
